k8s 证书修复与更新

[toc]

复盘k8s证书到期故障状态，与集群快速恢复

在所有证有书更新之前，要确保kubelet-client-current.pem 这个证书自动更新的

kubelet-client-current.pem 特殊证书的更新

说明

生产中kubebetes 不能随便调整时间，在操作的时候要注意，保持当前时间。

引入k8s1.15 - 1.18 的证书坑点，读取kubernetes 源码，可以发现 kubernetes kubelet-client-current.pem kubelet 客户端证书的轮换机制

https://github.com/kubernetes/kubernetes/blob/v1.18.0/staging/src/k8s.io/client-go/util/certificate/certificate_manager.go#L557

 // jitteryDuration uses some jitter to set the rotation threshold so each node
// will rotate at approximately 70-90% of the total lifetime of the
// certificate.  With jitter, if a number of nodes are added to a cluster at
// approximately the same time (such as cluster creation time), they won't all
// try to rotate certificates at the same time for the rest of the life of the
// cluster.

在生产中要确保以下/var/lib/kubelet/config.yaml rotateCertificates: true配置参数是开启的 ，因为kubernetes kubelet-client-current.pem 这个证书有轮转机制，即每当这个证书到了即将到期的70%-90% 时间周期时，kubelet 客户端会向 kube-controller-manager-k8s-master 发启更新请求。那么意味着这个证书不能超过它自身期限的90%，而在生产环境，默认开启以下参数，会自动更新，即除master1 ，kubelet-client-current.pem证书按正常时间推进默认不需要人为介入更新
master init 的节点会随着手动证书更新重启kubelet，kubelect client 证书也随着触发更新，而其它master ,node 这些join的节点 kubelet client 证书自动更新
生产中兜底方案，在当前时间到kubelet-client 证书有效期周期的 70% - 90% 范围时，调整生成证书年限为9年 重启kubelet 触发kubelet client 证书为9年后，再更新其它证书

 cat /var/lib/kubelet/config.yaml
rotateCertificates: true ## 确保轮换机制开启

操作: 模拟故障复盘

三个 master 证书变更配置

 vim /etc/kubernetes/manifests/kube-controller-manager.yaml
spec:
  containers:
  - command:
    - kube-controller-manager
    - --experimental-cluster-signing-duration=87600h0m0s ## 新增内容
    - --feature-gates=RotateKubeletServerCertificate=true ## 新增内容

逐个重启 controller

  kubectl delete pod kube-controller-manager-k8s-master1 -n kube-system
 kubectl delete pod kube-controller-manager-k8s-master2 -n kube-system
 kubectl delete pod kube-controller-manager-k8s-master3 -n kube-system

时间调整到证书到期的70-90% 之间

master1 master2 master3 node1 执行

 date -s "2022-05-20"

重启kubelet 获取证书

master1 master2 master3 node1 执行

 systemctl restart kubelet

验证kubelet 期后是否有效

 openssl x509 -in /var/lib/kubelet/pki/kubelet-client-current.pem -noout -dates
notBefore=May 19 15:57:00 2022 GMT
notAfter=Aug 10 14:35:09 2031 GMT

更改系统时间超前复现故障

三个master节点

  date -s "2027-05-20"

至次模拟出复盘故障
以下操作开始恢复集群

操作快速恢复

update-kubeadm-cert.sh 更新三个master 证书

将证书年限调整到 3285 即 9年

三个master均需执行

 CAER_DAYS=3285 ## 更改日期到9年
./update-kubeadm-cert.sh all ## 更新证书

api-server 启动后，个别服务显示running 但不影响,尝试重启docker 与kubelet

 vim clean.sh
#!/bin/bash
 docker rm $(sudo docker ps -qf status=exited)
 systemctl restart docker
 systemctl restart kubelet
 docker rm $(sudo docker ps -qf status=exited)
chmod +x clean.sh
bash clean.sh

不响应的组件，可以尝试清理让其再次自动修复

 for i in `kubectl get pod -A -o wide | grep master3 | awk '{print $2}'` ; do kubectl delete pod $i -n kube-system  ;done
for i in `kubectl get pod -A -o wide | grep master2 | awk '{print $2}'` ; do kubectl delete pod $i -n kube-system  ;done
for i in `kubectl get pod -A -o wide | grep master1 | awk '{print $2}'` ; do kubectl delete pod $i -n kube-system  ;done

三个master恢复后，正常docker ps 可以统计到至少14个 pod

为防止k8s 组件etcd 飘到master 启动不了, 可以每个node 保留一份k8s 组件镜像，并打标存放，若是非故障更新证书，一定要提前在每个node 上pull k8s master节点相关组件，避免coredns 飘到node 启动不了造成故障;

 ############下载镜像
docker pull registry.aliyuncs.com/google_containers/kube-apiserver:v1.15.0
docker pull registry.aliyuncs.com/google_containers/kube-controller-manager:v1.15.0
docker pull registry.aliyuncs.com/google_containers/kube-scheduler:v1.15.0
docker pull registry.aliyuncs.com/google_containers/kube-proxy:v1.15.0
docker pull registry.aliyuncs.com/google_containers/pause:3.1
docker pull registry.aliyuncs.com/google_containers/etcd:3.3.10
docker pull registry.aliyuncs.com/google_containers/coredns:1.3.1
############给镜像打一个新的tag
docker tag registry.aliyuncs.com/google_containers/kube-apiserver:v1.15.0 k8s.gcr.io/kube-apiserver:v1.15.0
docker tag registry.aliyuncs.com/google_containers/kube-controller-manager:v1.15.0 k8s.gcr.io/kube-controller-manager:v1.15.0
docker tag registry.aliyuncs.com/google_containers/kube-scheduler:v1.15.0 k8s.gcr.io/kube-scheduler:v1.15.0
docker tag registry.aliyuncs.com/google_containers/kube-proxy:v1.15.0 k8s.gcr.io/kube-proxy:v1.15.0
docker tag registry.aliyuncs.com/google_containers/pause:3.1 k8s.gcr.io/pause:3.1
docker tag registry.aliyuncs.com/google_containers/etcd:3.3.10 k8s.gcr.io/etcd:3.3.10
docker tag registry.aliyuncs.com/google_containers/coredns:1.3.1 k8s.gcr.io/coredns:1.3.1
#############删除之前的镜像
docker rmi registry.aliyuncs.com/google_containers/kube-apiserver:v1.15.0
docker rmi registry.aliyuncs.com/google_containers/kube-controller-manager:v1.15.0
docker rmi registry.aliyuncs.com/google_containers/kube-scheduler:v1.15.0
docker rmi registry.aliyuncs.com/google_containers/kube-proxy:v1.15.0
docker rmi registry.aliyuncs.com/google_containers/pause:3.1
docker rmi registry.aliyuncs.com/google_containers/etcd:3.3.10
docker rmi registry.aliyuncs.com/google_containers/coredns:1.3.1
docker images

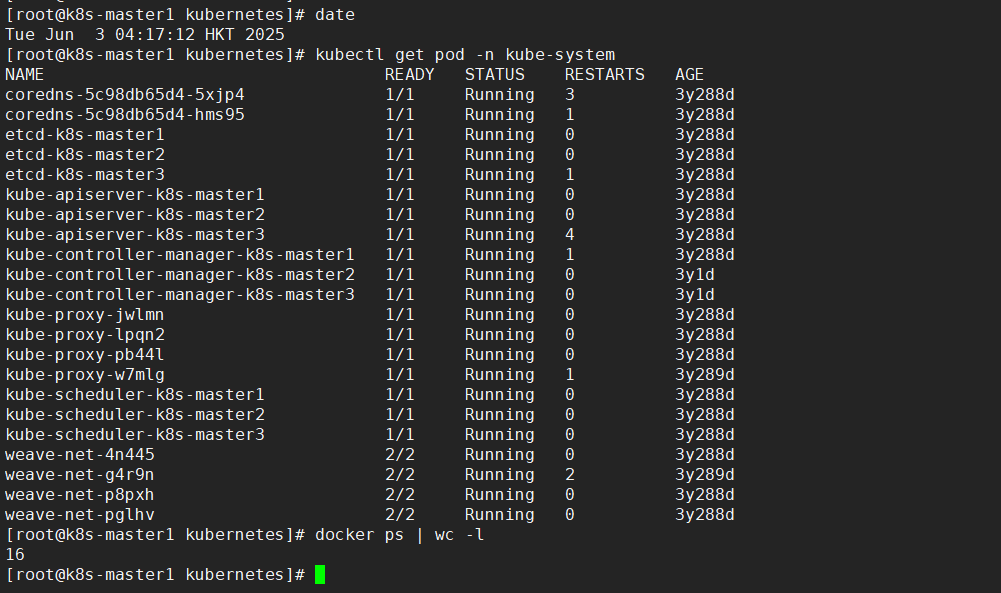

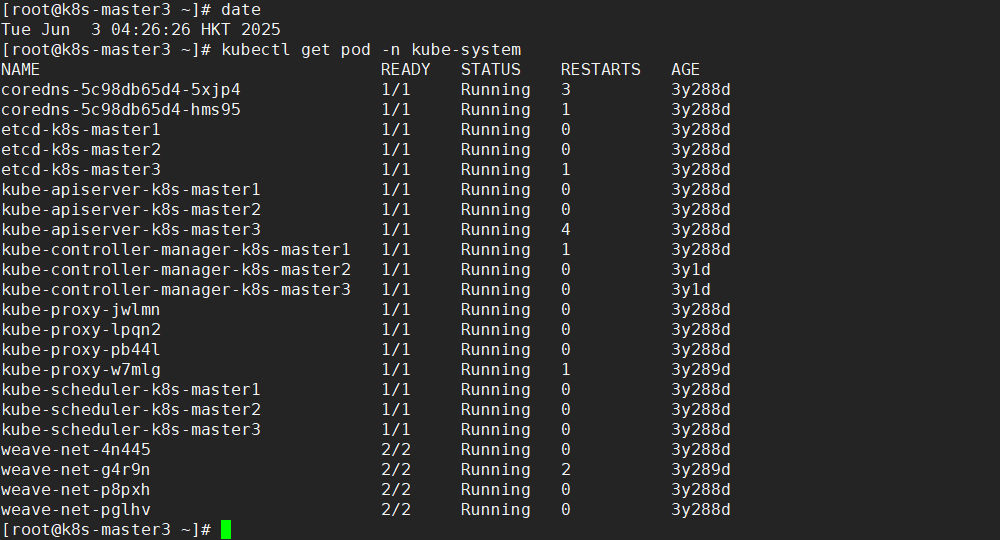

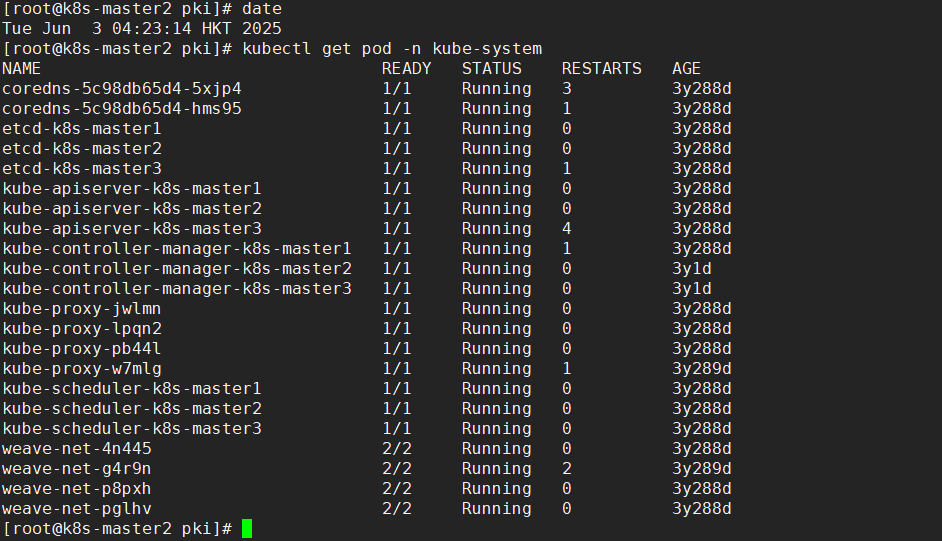

验证证书所有master 证书与服务响应

服务响应的验证要包涵在node 与 master 在内\

 # date
Thu May 20 01:50:42 HKT 2027
# kubeadm alpha certs check-expiration
CERTIFICATE                EXPIRES                  RESIDUAL TIME   EXTERNALLY MANAGED
admin.conf                 Dec 16, 2032 16:29 UTC   5y              no
apiserver                  Dec 16, 2032 16:29 UTC   5y              no
apiserver-etcd-client      Dec 16, 2032 16:29 UTC   5y              no
apiserver-kubelet-client   Dec 16, 2032 16:29 UTC   5y              no
controller-manager.conf    Dec 16, 2032 16:29 UTC   5y              no
etcd-healthcheck-client    Dec 16, 2032 16:29 UTC   5y              no
etcd-peer                  Dec 16, 2032 16:29 UTC   5y              no
etcd-server                Dec 16, 2032 16:29 UTC   5y              no
front-proxy-client         Dec 16, 2032 16:29 UTC   5y              no
scheduler.conf             Dec 16, 2032 16:29 UTC   5y              no

 # curl -s 127.0.0.1:31404 | grep 'test'
            <dd><a href="http://www.ssjinyao.com/test">Test Page<span>&gt;&gt;</span></a></dd>

针对未故障状态证书到期续期

官方一年一续

三个master逐步执行

备份config etcd kuberntes 配置

 mv $HOME/.kube/config $HOME/.kube/config-`date +"%Y-%m-%d-%H-%M-%S"`
cp -a /var/lib/etcd /var/lib/etcd-`date +"%Y-%m-%d-%H-%M-%S"`
cp -a /etc/kubernetes /etc/kubernetes-`date +"%Y-%m-%d-%H-%M-%S"`

master 和node 都pull 并 tag 一份k8s组件，避免coredns 飘到node启不来
重新生成证书

 kubeadm alpha certs renew all --config=kubeadm.yaml
kubeadm init phase kubeconfig all --config kubeadm.yaml
systemctl restart kubelet

重启相关组件

 # docker ps | awk '/k8s_kube-apiserver/{print$1}' | xargs -r -I '{}' docker restart {} || true
# docker ps | awk '/k8s_kube-controller-manager/{print$1}' | xargs -r -I '{}' docker restart {} || true
# docker ps | awk '/k8s_kube-scheduler/{print$1}' | xargs -r -I '{}' docker restart {} || true
# docker ps | awk '/k8s_etcd/{print$1}' | xargs -r -I '{}' docker restart {} || true

更新admin config

 # cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
# chown $(id -u):$(id -g) $HOME/.kube/config

脚本方式

三个 master 证书变更配置

 vim /etc/kubernetes/manifests/kube-controller-manager.yaml
spec:
  containers:
  - command:
    - kube-controller-manager
    - --experimental-cluster-signing-duration=87600h0m0s ## 新增内容
    - --feature-gates=RotateKubeletServerCertificate=true ## 新增内容

逐个重启 controller

  kubectl delete pod kube-controller-manager-k8s-master1 -n kube-system
 kubectl delete pod kube-controller-manager-k8s-master2 -n kube-system
 kubectl delete pod kube-controller-manager-k8s-master3 -n kube-system

master 和 node 重启kuebet 主动更新kuebelet client 证书到十年

 systemctl restart kubelet
# 重启后没有生成   systemctl stop kubelet

三个master 逐步执行

备份config etcd kuberntes 配置

 mv $HOME/.kube/config $HOME/.kube/config-`date +"%Y-%m-%d-%H-%M-%S"`
cp -a /var/lib/etcd /var/lib/etcd-`date +"%Y-%m-%d-%H-%M-%S"`
cp -a /etc/kubernetes /etc/kubernetes-`date +"%Y-%m-%d-%H-%M-%S"`

将证书年限调整到 3285 即 9年

证书更新五年期限

 vim update-kubeadm-cert.sh
#修改CAER_DAYS 变量为即为9年
3285

逐步一台台master的执行

 ./update-kubeadm-cert.sh all
kubeadm alpha certs check-expiration # 查看当前证书时间

补充

打标签

 kubectl label nodes node13 role=code ## 打标签
kubectl  get node --show-labels ## 查看标签

查看证书到期时间

 kubeadm alpha certs check-expiration

image pull Error报错

部分因为pod 占用的名称一样，导致k8s组件启不来

 docker rm $(docker ps -a | grep Exited| awk '{print $1}')

kubernetes组件调到node时

本地没有kubernetes组件镜像时会启不来，最好Node节点下本地pull 一份k8s的组件

 ############下载镜像
docker pull registry.aliyuncs.com/google_containers/kube-apiserver:v1.15.0
docker pull registry.aliyuncs.com/google_containers/kube-controller-manager:v1.15.0
docker pull registry.aliyuncs.com/google_containers/kube-scheduler:v1.15.0
docker pull registry.aliyuncs.com/google_containers/kube-proxy:v1.15.0
docker pull registry.aliyuncs.com/google_containers/pause:3.1
docker pull registry.aliyuncs.com/google_containers/etcd:3.3.10
docker pull registry.aliyuncs.com/google_containers/coredns:1.3.1
############给镜像打一个新的tag
docker tag registry.aliyuncs.com/google_containers/kube-apiserver:v1.15.0 k8s.gcr.io/kube-apiserver:v1.15.0
docker tag registry.aliyuncs.com/google_containers/kube-controller-manager:v1.15.0 k8s.gcr.io/kube-controller-manager:v1.15.0
docker tag registry.aliyuncs.com/google_containers/kube-scheduler:v1.15.0 k8s.gcr.io/kube-scheduler:v1.15.0
docker tag registry.aliyuncs.com/google_containers/kube-proxy:v1.15.0 k8s.gcr.io/kube-proxy:v1.15.0
docker tag registry.aliyuncs.com/google_containers/pause:3.1 k8s.gcr.io/pause:3.1
docker tag registry.aliyuncs.com/google_containers/etcd:3.3.10 k8s.gcr.io/etcd:3.3.10
docker tag registry.aliyuncs.com/google_containers/coredns:1.3.1 k8s.gcr.io/coredns:1.3.1
#############删除之前的镜像
docker rmi registry.aliyuncs.com/google_containers/kube-apiserver:v1.15.0
docker rmi registry.aliyuncs.com/google_containers/kube-controller-manager:v1.15.0
docker rmi registry.aliyuncs.com/google_containers/kube-scheduler:v1.15.0
docker rmi registry.aliyuncs.com/google_containers/kube-proxy:v1.15.0
docker rmi registry.aliyuncs.com/google_containers/pause:3.1
docker rmi registry.aliyuncs.com/google_containers/etcd:3.3.10
docker rmi registry.aliyuncs.com/google_containers/coredns:1.3.1
docker images

查看根证书的时间年限

一定要注意，根证书到期的话，多个master的证书都得换，有业务的的重要集群，最好是做好迁移

 openssl x509 -in front-proxy-ca.crt -text -noout
openssl x509 -in ca.crt -text -noout
cd etcd && openssl x509 -in ca.crt -text -noout

附: 证书更新脚本

 #!/bin/bash

set -o errexit
set -o pipefail
# set -o xtrace

log::err() {
  printf "[$(date +'%Y-%m-%dT%H:%M:%S.%N%z')]: \033[31mERROR: \033[0m$@\n"
}

log::info() {
  printf "[$(date +'%Y-%m-%dT%H:%M:%S.%N%z')]: \033[32mINFO: \033[0m$@\n"
}

log::warning() {
  printf "[$(date +'%Y-%m-%dT%H:%M:%S.%N%z')]: \033[33mWARNING: \033[0m$@\n"
}

check_file() {
  if [[ ! -r  ${1} ]]; then
    log::err "can not find ${1}"
    exit 1
  fi
}

# get x509v3 subject alternative name from the old certificate
cert::get_subject_alt_name() {
  local cert=${1}.crt
  check_file "${cert}"
  local alt_name=$(openssl x509 -text -noout -in ${cert} | grep -A1 'Alternative' | tail -n1 | sed 's/[[:space:]]*Address//g')
  printf "${alt_name}\n"
}

# get subject from the old certificate
cert::get_subj() {
  local cert=${1}.crt
  check_file "${cert}"
  local subj=$(openssl x509 -text -noout -in ${cert}  | grep "Subject:" | sed 's/Subject:/\//g;s/\,/\//;s/[[:space:]]//g')
  printf "${subj}\n"
}

cert::backup_file() {
  local file=${1}
  if [[ ! -e ${file}.old-$(date +%Y%m%d) ]]; then
    cp -rp ${file} ${file}.old-$(date +%Y%m%d)
    log::info "backup ${file} to ${file}.old-$(date +%Y%m%d)"
  else
    log::warning "does not backup, ${file}.old-$(date +%Y%m%d) already exists"
  fi
}

# generate certificate whit client, server or peer
# Args:
#   $1 (the name of certificate)
#   $2 (the type of certificate, must be one of client, server, peer)
#   $3 (the subject of certificates)
#   $4 (the validity of certificates) (days)
#   $5 (the x509v3 subject alternative name of certificate when the type of certificate is server or peer)
cert::gen_cert() {
  local cert_name=${1}
  local cert_type=${2}
  local subj=${3}
  local cert_days=${4}
  local alt_name=${5}
  local cert=${cert_name}.crt
  local key=${cert_name}.key
  local csr=${cert_name}.csr
  local csr_conf="distinguished_name = dn\n[dn]\n[v3_ext]\nkeyUsage = critical, digitalSignature, keyEncipherment\n"

  check_file "${key}"
  check_file "${cert}"

  # backup certificate when certificate not in ${kubeconf_arr[@]}
  # kubeconf_arr=("controller-manager.crt" "scheduler.crt" "admin.crt" "kubelet.crt")
  # if [[ ! "${kubeconf_arr[@]}" =~ "${cert##*/}" ]]; then
  #   cert::backup_file "${cert}"
  # fi

  case "${cert_type}" in
    client)
      openssl req -new  -key ${key} -subj "${subj}" -reqexts v3_ext \
        -config <(printf "${csr_conf} extendedKeyUsage = clientAuth\n") -out ${csr}
      openssl x509 -in ${csr} -req -CA ${CA_CERT} -CAkey ${CA_KEY} -CAcreateserial -extensions v3_ext \
        -extfile <(printf "${csr_conf} extendedKeyUsage = clientAuth\n") -days ${cert_days} -out ${cert}
      log::info "generated ${cert}"
    ;;
    server)
      openssl req -new  -key ${key} -subj "${subj}" -reqexts v3_ext \
        -config <(printf "${csr_conf} extendedKeyUsage = serverAuth\nsubjectAltName = ${alt_name}\n") -out ${csr}
      openssl x509 -in ${csr} -req -CA ${CA_CERT} -CAkey ${CA_KEY} -CAcreateserial -extensions v3_ext \
        -extfile <(printf "${csr_conf} extendedKeyUsage = serverAuth\nsubjectAltName = ${alt_name}\n") -days ${cert_days} -out ${cert}
      log::info "generated ${cert}"
    ;;
    peer)
      openssl req -new  -key ${key} -subj "${subj}" -reqexts v3_ext \
        -config <(printf "${csr_conf} extendedKeyUsage = serverAuth, clientAuth\nsubjectAltName = ${alt_name}\n") -out ${csr}
      openssl x509 -in ${csr} -req -CA ${CA_CERT} -CAkey ${CA_KEY} -CAcreateserial -extensions v3_ext \
        -extfile <(printf "${csr_conf} extendedKeyUsage = serverAuth, clientAuth\nsubjectAltName = ${alt_name}\n") -days ${cert_days} -out ${cert}
      log::info "generated ${cert}"
    ;;
    *)
      log::err "unknow, unsupported etcd certs type: ${cert_type}, supported type: client, server, peer"
      exit 1
  esac

  rm -f ${csr}
}

cert::update_kubeconf() {
  local cert_name=${1}
  local kubeconf_file=${cert_name}.conf
  local cert=${cert_name}.crt
  local key=${cert_name}.key

  # generate  certificate
  check_file ${kubeconf_file}
  # get the key from the old kubeconf
  grep "client-key-data" ${kubeconf_file} | awk {'print$2'} | base64 -d > ${key}
  # get the old certificate from the old kubeconf
  grep "client-certificate-data" ${kubeconf_file} | awk {'print$2'} | base64 -d > ${cert}
  # get subject from the old certificate
  local subj=$(cert::get_subj ${cert_name})
  cert::gen_cert "${cert_name}" "client" "${subj}" "${CAER_DAYS}"
  # get certificate base64 code
  local cert_base64=$(base64 -w 0 ${cert})

  # backup kubeconf
  # cert::backup_file "${kubeconf_file}"

  # set certificate base64 code to kubeconf
  sed -i 's/client-certificate-data:.*/client-certificate-data: '${cert_base64}'/g' ${kubeconf_file}

  log::info "generated new ${kubeconf_file}"
  rm -f ${cert}
  rm -f ${key}

  # set config for kubectl
  if [[ ${cert_name##*/} == "admin" ]]; then
    mkdir -p ${HOME}/.kube
    local config=${HOME}/.kube/config
    local config_backup=${HOME}/.kube/config.old-$(date +%Y%m%d)
    if [[ -f ${config} ]] && [[ ! -f ${config_backup} ]]; then
      cp -fp ${config} ${config_backup}
      log::info "backup ${config} to ${config_backup}"
    fi
    cp -fp ${kubeconf_file} ${HOME}/.kube/config
    log::info "copy the admin.conf to ${HOME}/.kube/config for kubectl"
  fi
}

cert::update_etcd_cert() {
  PKI_PATH=${KUBE_PATH}/pki/etcd
  CA_CERT=${PKI_PATH}/ca.crt
  CA_KEY=${PKI_PATH}/ca.key

  check_file "${CA_CERT}"
  check_file "${CA_KEY}"

  # generate etcd server certificate
  # /etc/kubernetes/pki/etcd/server
  CART_NAME=${PKI_PATH}/server
  subject_alt_name=$(cert::get_subject_alt_name ${CART_NAME})
  cert::gen_cert "${CART_NAME}" "peer" "/CN=etcd-server" "${CAER_DAYS}" "${subject_alt_name}"

  # generate etcd peer certificate
  # /etc/kubernetes/pki/etcd/peer
  CART_NAME=${PKI_PATH}/peer
  subject_alt_name=$(cert::get_subject_alt_name ${CART_NAME})
  cert::gen_cert "${CART_NAME}" "peer" "/CN=etcd-peer" "${CAER_DAYS}" "${subject_alt_name}"

  # generate etcd healthcheck-client certificate
  # /etc/kubernetes/pki/etcd/healthcheck-client
  CART_NAME=${PKI_PATH}/healthcheck-client
  cert::gen_cert "${CART_NAME}" "client" "/O=system:masters/CN=kube-etcd-healthcheck-client" "${CAER_DAYS}"

  # generate apiserver-etcd-client certificate
  # /etc/kubernetes/pki/apiserver-etcd-client
  check_file "${CA_CERT}"
  check_file "${CA_KEY}"
  PKI_PATH=${KUBE_PATH}/pki
  CART_NAME=${PKI_PATH}/apiserver-etcd-client
  cert::gen_cert "${CART_NAME}" "client" "/O=system:masters/CN=kube-apiserver-etcd-client" "${CAER_DAYS}"

  # restart etcd
  docker ps | awk '/k8s_etcd/{print$1}' | xargs -r -I '{}' docker restart {} || true
  log::info "restarted etcd"
}

cert::update_master_cert() {
  PKI_PATH=${KUBE_PATH}/pki
  CA_CERT=${PKI_PATH}/ca.crt
  CA_KEY=${PKI_PATH}/ca.key

  check_file "${CA_CERT}"
  check_file "${CA_KEY}"

  # generate apiserver server certificate
  # /etc/kubernetes/pki/apiserver
  CART_NAME=${PKI_PATH}/apiserver
  subject_alt_name=$(cert::get_subject_alt_name ${CART_NAME})
  cert::gen_cert "${CART_NAME}" "server" "/CN=kube-apiserver" "${CAER_DAYS}" "${subject_alt_name}"

  # generate apiserver-kubelet-client certificate
  # /etc/kubernetes/pki/apiserver-kubelet-client
  CART_NAME=${PKI_PATH}/apiserver-kubelet-client
  cert::gen_cert "${CART_NAME}" "client" "/O=system:masters/CN=kube-apiserver-kubelet-client" "${CAER_DAYS}"

  # generate kubeconf for controller-manager,scheduler,kubectl and kubelet
  # /etc/kubernetes/controller-manager,scheduler,admin,kubelet.conf
  cert::update_kubeconf "${KUBE_PATH}/controller-manager"
  cert::update_kubeconf "${KUBE_PATH}/scheduler"
  cert::update_kubeconf "${KUBE_PATH}/admin"
  # check kubelet.conf
  # https://github.com/kubernetes/kubeadm/issues/1753
  set +e
  grep kubelet-client-current.pem /etc/kubernetes/kubelet.conf > /dev/null 2>&1
  kubelet_cert_auto_update=$?
  set -e
  if [[ "$kubelet_cert_auto_update" == "0" ]]; then
    log::warning "does not need to update kubelet.conf"
  else
    cert::update_kubeconf "${KUBE_PATH}/kubelet"
  fi

  # generate front-proxy-client certificate
  # use front-proxy-client ca
  CA_CERT=${PKI_PATH}/front-proxy-ca.crt
  CA_KEY=${PKI_PATH}/front-proxy-ca.key
  check_file "${CA_CERT}"
  check_file "${CA_KEY}"
  CART_NAME=${PKI_PATH}/front-proxy-client
  cert::gen_cert "${CART_NAME}" "client" "/CN=front-proxy-client" "${CAER_DAYS}"

  # restart apiserve, controller-manager, scheduler and kubelet
  docker ps | awk '/k8s_kube-apiserver/{print$1}' | xargs -r -I '{}' docker restart {} || true
  log::info "restarted kube-apiserver"
  docker ps | awk '/k8s_kube-controller-manager/{print$1}' | xargs -r -I '{}' docker restart {} || true
  log::info "restarted kube-controller-manager"
  docker ps | awk '/k8s_kube-scheduler/{print$1}' | xargs -r -I '{}' docker restart {} || true
  log::info "restarted kube-scheduler"
  systemctl restart kubelet
  log::info "restarted kubelet"
}

main() {
  local node_tpye=$1

  KUBE_PATH=/etc/kubernetes
  CAER_DAYS=3285

  case ${node_tpye} in
    # etcd)
      # # update etcd certificates
    #   cert::update_etcd_cert
    # ;;
    master)
      # backup $KUBE_PATH to $KUBE_PATH.old-$(date +%Y%m%d)
      cert::backup_file "${KUBE_PATH}"
        # update master certificates and kubeconf
      cert::update_master_cert
    ;;
    all)
      # backup $KUBE_PATH to $KUBE_PATH.old-$(date +%Y%m%d)
      cert::backup_file "${KUBE_PATH}"
      # update etcd certificates
      cert::update_etcd_cert
      # update master certificates and kubeconf
      cert::update_master_cert
    ;;
    *)
      log::err "unknow, unsupported certs type: ${node_tpye}, supported type: all, master"
      printf"
  example:
    '\033[32m./update-kubeadm-cert.sh all\033[0m' update all etcd certificates, master certificates and kubeconf
      /etc/kubernetes
      ├── admin.conf
      ├── controller-manager.conf
      ├── scheduler.conf
      ├── kubelet.conf
      └── pki
          ├── apiserver.crt
          ├── apiserver-etcd-client.crt
          ├── apiserver-kubelet-client.crt
          ├── front-proxy-client.crt
          └── etcd
              ├── healthcheck-client.crt
              ├── peer.crt
              └── server.crt

    '\033[32m./update-kubeadm-cert.sh master\033[0m' update only master certificates and kubeconf
      /etc/kubernetes
      ├── admin.conf
      ├── controller-manager.conf
      ├── scheduler.conf
      ├── kubelet.conf
      └── pki
          ├── apiserver.crt
          ├── apiserver-kubelet-client.crt
          └── front-proxy-client.crt
"
      exit 1
    esac
}

main "$@"

测试环境可更改年限超前验证集群可用性

master1

master2

master3

 # curl -s 127.0.0.1:31404 | grep 'test'
            <dd><a href="http://www.ssjinyao.com/test">Test Page<span>&gt;&gt;</span></a></dd>

附:后续工作中遇到集群证书过期

补充一下该脚本的执行输出结果;

 [2024-01-02T17:08:03.517506065+0800]: INFO: backup /etc/kubernetes to /etc/kubernetes.old-20240102
Signature ok
subject=/CN=etcd-server
Getting CA Private Key
[2024-01-02T17:08:03.623833545+0800]: INFO: generated /etc/kubernetes/pki/etcd/server.crt
Signature ok
subject=/CN=etcd-peer
Getting CA Private Key
[2024-01-02T17:08:03.669417879+0800]: INFO: generated /etc/kubernetes/pki/etcd/peer.crt
Signature ok
subject=/O=system:masters/CN=kube-etcd-healthcheck-client
Getting CA Private Key
[2024-01-02T17:08:03.695522405+0800]: INFO: generated /etc/kubernetes/pki/etcd/healthcheck-client.crt
Signature ok
subject=/O=system:masters/CN=kube-apiserver-etcd-client
Getting CA Private Key
[2024-01-02T17:08:03.722051373+0800]: INFO: generated /etc/kubernetes/pki/apiserver-etcd-client.crt
b9f7b1a762d2
[2024-01-02T17:08:04.330615364+0800]: INFO: restarted etcd
Signature ok
subject=/CN=kube-apiserver
Getting CA Private Key
[2024-01-02T17:08:04.375020513+0800]: INFO: generated /etc/kubernetes/pki/apiserver.crt
Signature ok
subject=/O=system:masters/CN=kube-apiserver-kubelet-client
Getting CA Private Key
[2024-01-02T17:08:04.402700491+0800]: INFO: generated /etc/kubernetes/pki/apiserver-kubelet-client.crt
Signature ok
subject=/CN=system:kube-controller-manager
Getting CA Private Key
[2024-01-02T17:08:04.470952486+0800]: INFO: generated /etc/kubernetes/controller-manager.crt
[2024-01-02T17:08:04.481956357+0800]: INFO: generated new /etc/kubernetes/controller-manager.conf
Signature ok
subject=/CN=system:kube-scheduler
Getting CA Private Key
[2024-01-02T17:08:04.631991064+0800]: INFO: generated /etc/kubernetes/scheduler.crt
[2024-01-02T17:08:04.643149234+0800]: INFO: generated new /etc/kubernetes/scheduler.conf
Signature ok
subject=/O=system:masters/CN=kubernetes-admin
Getting CA Private Key
[2024-01-02T17:08:04.696606019+0800]: INFO: generated /etc/kubernetes/admin.crt
[2024-01-02T17:08:04.774055697+0800]: INFO: generated new /etc/kubernetes/admin.conf
[2024-01-02T17:08:04.806305103+0800]: INFO: backup /root/.kube/config to /root/.kube/config.old-20240102
[2024-01-02T17:08:04.810521622+0800]: INFO: copy the admin.conf to /root/.kube/config for kubectl
[2024-01-02T17:08:04.814804123+0800]: WARNING: does not need to update kubelet.conf
Signature ok
subject=/CN=front-proxy-client
Getting CA Private Key
[2024-01-02T17:08:04.843010074+0800]: INFO: generated /etc/kubernetes/pki/front-proxy-client.crt
a992d9f3df88
[2024-01-02T17:08:09.644624810+0800]: INFO: restarted kube-apiserver
fd321709db1a
[2024-01-02T17:08:10.474198268+0800]: INFO: restarted kube-controller-manager
e1f71d3acbff
[2024-01-02T17:08:11.037594302+0800]: INFO: restarted kube-scheduler
[2024-01-02T17:08:11.561803226+0800]: INFO: restarted kubelet

	// jitteryDuration uses some jitter to set the rotation threshold so each node
	// will rotate at approximately 70-90% of the total lifetime of the
	// certificate. With jitter, if a number of nodes are added to a cluster at
	// approximately the same time (such as cluster creation time), they won't all
	// try to rotate certificates at the same time for the rest of the life of the
	// cluster.

	cat /var/lib/kubelet/config.yaml
	rotateCertificates: true ## 确保轮换机制开启

	vim /etc/kubernetes/manifests/kube-controller-manager.yaml
	spec:
	containers:
	- command:
	- kube-controller-manager
	- --experimental-cluster-signing-duration=87600h0m0s ## 新增内容
	- --feature-gates=RotateKubeletServerCertificate=true ## 新增内容

	kubectl delete pod kube-controller-manager-k8s-master1 -n kube-system
	kubectl delete pod kube-controller-manager-k8s-master2 -n kube-system
	kubectl delete pod kube-controller-manager-k8s-master3 -n kube-system

	openssl x509 -in /var/lib/kubelet/pki/kubelet-client-current.pem -noout -dates
	notBefore=May 19 15:57:00 2022 GMT
	notAfter=Aug 10 14:35:09 2031 GMT

	CAER_DAYS=3285 ## 更改日期到9年
	./update-kubeadm-cert.sh all ## 更新证书

	vim clean.sh
	#!/bin/bash
	docker rm $(sudo docker ps -qf status=exited)
	systemctl restart docker
	systemctl restart kubelet
	docker rm $(sudo docker ps -qf status=exited)
	chmod +x clean.sh
	bash clean.sh

	for i in `kubectl get pod -A -o wide \| grep master3 \| awk '{print $2}'` ; do kubectl delete pod $i -n kube-system ;done
	for i in `kubectl get pod -A -o wide \| grep master2 \| awk '{print $2}'` ; do kubectl delete pod $i -n kube-system ;done
	for i in `kubectl get pod -A -o wide \| grep master1 \| awk '{print $2}'` ; do kubectl delete pod $i -n kube-system ;done

	############下载镜像
	docker pull registry.aliyuncs.com/google_containers/kube-apiserver:v1.15.0
	docker pull registry.aliyuncs.com/google_containers/kube-controller-manager:v1.15.0
	docker pull registry.aliyuncs.com/google_containers/kube-scheduler:v1.15.0
	docker pull registry.aliyuncs.com/google_containers/kube-proxy:v1.15.0
	docker pull registry.aliyuncs.com/google_containers/pause:3.1
	docker pull registry.aliyuncs.com/google_containers/etcd:3.3.10
	docker pull registry.aliyuncs.com/google_containers/coredns:1.3.1
	############给镜像打一个新的tag
	docker tag registry.aliyuncs.com/google_containers/kube-apiserver:v1.15.0 k8s.gcr.io/kube-apiserver:v1.15.0
	docker tag registry.aliyuncs.com/google_containers/kube-controller-manager:v1.15.0 k8s.gcr.io/kube-controller-manager:v1.15.0
	docker tag registry.aliyuncs.com/google_containers/kube-scheduler:v1.15.0 k8s.gcr.io/kube-scheduler:v1.15.0
	docker tag registry.aliyuncs.com/google_containers/kube-proxy:v1.15.0 k8s.gcr.io/kube-proxy:v1.15.0
	docker tag registry.aliyuncs.com/google_containers/pause:3.1 k8s.gcr.io/pause:3.1
	docker tag registry.aliyuncs.com/google_containers/etcd:3.3.10 k8s.gcr.io/etcd:3.3.10
	docker tag registry.aliyuncs.com/google_containers/coredns:1.3.1 k8s.gcr.io/coredns:1.3.1
	#############删除之前的镜像
	docker rmi registry.aliyuncs.com/google_containers/kube-apiserver:v1.15.0
	docker rmi registry.aliyuncs.com/google_containers/kube-controller-manager:v1.15.0
	docker rmi registry.aliyuncs.com/google_containers/kube-scheduler:v1.15.0
	docker rmi registry.aliyuncs.com/google_containers/kube-proxy:v1.15.0
	docker rmi registry.aliyuncs.com/google_containers/pause:3.1
	docker rmi registry.aliyuncs.com/google_containers/etcd:3.3.10
	docker rmi registry.aliyuncs.com/google_containers/coredns:1.3.1
	docker images

	# date
	Thu May 20 01:50:42 HKT 2027
	# kubeadm alpha certs check-expiration
	CERTIFICATE EXPIRES RESIDUAL TIME EXTERNALLY MANAGED
	admin.conf Dec 16, 2032 16:29 UTC 5y no
	apiserver Dec 16, 2032 16:29 UTC 5y no
	apiserver-etcd-client Dec 16, 2032 16:29 UTC 5y no
	apiserver-kubelet-client Dec 16, 2032 16:29 UTC 5y no
	controller-manager.conf Dec 16, 2032 16:29 UTC 5y no
	etcd-healthcheck-client Dec 16, 2032 16:29 UTC 5y no
	etcd-peer Dec 16, 2032 16:29 UTC 5y no
	etcd-server Dec 16, 2032 16:29 UTC 5y no
	front-proxy-client Dec 16, 2032 16:29 UTC 5y no
	scheduler.conf Dec 16, 2032 16:29 UTC 5y no

	# curl -s 127.0.0.1:31404 \| grep 'test'
	<dd><a href="http://www.ssjinyao.com/test">Test Page<span>>></span></a></dd>

	mv $HOME/.kube/config $HOME/.kube/config-`date +"%Y-%m-%d-%H-%M-%S"`
	cp -a /var/lib/etcd /var/lib/etcd-`date +"%Y-%m-%d-%H-%M-%S"`
	cp -a /etc/kubernetes /etc/kubernetes-`date +"%Y-%m-%d-%H-%M-%S"`

	kubeadm alpha certs renew all --config=kubeadm.yaml
	kubeadm init phase kubeconfig all --config kubeadm.yaml
	systemctl restart kubelet

	# docker ps \| awk '/k8s_kube-apiserver/{print$1}' \| xargs -r -I '{}' docker restart {} \|\| true
	# docker ps \| awk '/k8s_kube-controller-manager/{print$1}' \| xargs -r -I '{}' docker restart {} \|\| true
	# docker ps \| awk '/k8s_kube-scheduler/{print$1}' \| xargs -r -I '{}' docker restart {} \|\| true
	# docker ps \| awk '/k8s_etcd/{print$1}' \| xargs -r -I '{}' docker restart {} \|\| true

	# cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
	# chown $(id -u):$(id -g) $HOME/.kube/config

	systemctl restart kubelet
	# 重启后没有生成 systemctl stop kubelet

	vim update-kubeadm-cert.sh
	#修改CAER_DAYS 变量为即为9年
	3285

	./update-kubeadm-cert.sh all
	kubeadm alpha certs check-expiration # 查看当前证书时间

	kubectl label nodes node13 role=code ## 打标签
	kubectl get node --show-labels ## 查看标签

	openssl x509 -in front-proxy-ca.crt -text -noout
	openssl x509 -in ca.crt -text -noout
	cd etcd && openssl x509 -in ca.crt -text -noout

复盘kubernetes证书到期故障状与集群快速恢复

k8s 证书修复与更新

复盘k8s证书到期故障状态，与集群快速恢复

kubelet-client-current.pem 特殊证书的更新

说明

操作: 模拟故障复盘

三个 master 证书 变更配置

逐个重启 controller

时间调整到证书到期的70-90% 之间

重启kubelet 获取证书

验证kubelet 期后是否有效

更改系统时间超前复现故障

操作快速恢复

update-kubeadm-cert.sh 更新三个master 证书

将证书年限调整到 3285 即 9年

验证证书所有master 证书与服务响应

针对未故障状态证书到期续期

官方一年一续

脚本方式

三个 master 证书 变更配置

逐个重启 controller

master 和 node 重启kuebet 主动更新kuebelet client 证书到十年

将证书年限调整到 3285 即 9年

补充

打标签

查看证书到期时间

image pull Error报错

kubernetes组件调到node时

查看根证书的时间年限

附: 证书更新脚本

测试环境可更改年限超前验证集群可用性

附:后续工作中遇到集群证书过期

三个 master 证书变更配置

三个 master 证书变更配置

	#!/bin/bash

	set -o errexit
	set -o pipefail
	# set -o xtrace

	log::err() {
	printf "[$(date +'%Y-%m-%dT%H:%M:%S.%N%z')]: \033[31mERROR: \033[0m$@\n"
	}

	log::info() {
	printf "[$(date +'%Y-%m-%dT%H:%M:%S.%N%z')]: \033[32mINFO: \033[0m$@\n"
	}

	log::warning() {
	printf "[$(date +'%Y-%m-%dT%H:%M:%S.%N%z')]: \033[33mWARNING: \033[0m$@\n"
	}

	check_file() {
	if [[ ! -r ${1} ]]; then
	log::err "can not find ${1}"
	exit 1
	fi
	}

	# get x509v3 subject alternative name from the old certificate
	cert::get_subject_alt_name() {
	local cert=${1}.crt
	check_file "${cert}"
	local alt_name=$(openssl x509 -text -noout -in ${cert} \| grep -A1 'Alternative' \| tail -n1 \| sed 's/[[:space:]]*Address//g')
	printf "${alt_name}\n"
	}

	# get subject from the old certificate
	cert::get_subj() {
	local cert=${1}.crt
	check_file "${cert}"
	local subj=$(openssl x509 -text -noout -in ${cert} \| grep "Subject:" \| sed 's/Subject:/\//g;s/\,/\//;s/[[:space:]]//g')
	printf "${subj}\n"
	}

	cert::backup_file() {
	local file=${1}
	if [[ ! -e ${file}.old-$(date +%Y%m%d) ]]; then
	cp -rp ${file} ${file}.old-$(date +%Y%m%d)
	log::info "backup ${file} to ${file}.old-$(date +%Y%m%d)"
	else
	log::warning "does not backup, ${file}.old-$(date +%Y%m%d) already exists"
	fi
	}

	# generate certificate whit client, server or peer
	# Args:
	# $1 (the name of certificate)
	# $2 (the type of certificate, must be one of client, server, peer)
	# $3 (the subject of certificates)
	# $4 (the validity of certificates) (days)
	# $5 (the x509v3 subject alternative name of certificate when the type of certificate is server or peer)
	cert::gen_cert() {
	local cert_name=${1}
	local cert_type=${2}
	local subj=${3}
	local cert_days=${4}
	local alt_name=${5}
	local cert=${cert_name}.crt
	local key=${cert_name}.key
	local csr=${cert_name}.csr
	local csr_conf="distinguished_name = dn\n[dn]\n[v3_ext]\nkeyUsage = critical, digitalSignature, keyEncipherment\n"

	check_file "${key}"
	check_file "${cert}"

	# backup certificate when certificate not in ${kubeconf_arr[@]}
	# kubeconf_arr=("controller-manager.crt" "scheduler.crt" "admin.crt" "kubelet.crt")
	# if [[ ! "${kubeconf_arr[@]}" =~ "${cert##*/}" ]]; then
	# cert::backup_file "${cert}"
	# fi

	case "${cert_type}" in
	client)
	openssl req -new -key ${key} -subj "${subj}" -reqexts v3_ext \
	-config <(printf "${csr_conf} extendedKeyUsage = clientAuth\n") -out ${csr}
	openssl x509 -in ${csr} -req -CA ${CA_CERT} -CAkey ${CA_KEY} -CAcreateserial -extensions v3_ext \
	-extfile <(printf "${csr_conf} extendedKeyUsage = clientAuth\n") -days ${cert_days} -out ${cert}
	log::info "generated ${cert}"
	;;
	server)
	openssl req -new -key ${key} -subj "${subj}" -reqexts v3_ext \
	-config <(printf "${csr_conf} extendedKeyUsage = serverAuth\nsubjectAltName = ${alt_name}\n") -out ${csr}
	openssl x509 -in ${csr} -req -CA ${CA_CERT} -CAkey ${CA_KEY} -CAcreateserial -extensions v3_ext \
	-extfile <(printf "${csr_conf} extendedKeyUsage = serverAuth\nsubjectAltName = ${alt_name}\n") -days ${cert_days} -out ${cert}
	log::info "generated ${cert}"
	;;
	peer)
	openssl req -new -key ${key} -subj "${subj}" -reqexts v3_ext \
	-config <(printf "${csr_conf} extendedKeyUsage = serverAuth, clientAuth\nsubjectAltName = ${alt_name}\n") -out ${csr}
	openssl x509 -in ${csr} -req -CA ${CA_CERT} -CAkey ${CA_KEY} -CAcreateserial -extensions v3_ext \
	-extfile <(printf "${csr_conf} extendedKeyUsage = serverAuth, clientAuth\nsubjectAltName = ${alt_name}\n") -days ${cert_days} -out ${cert}
	log::info "generated ${cert}"
	;;
	*)
	log::err "unknow, unsupported etcd certs type: ${cert_type}, supported type: client, server, peer"
	exit 1
	esac

	rm -f ${csr}
	}

	cert::update_kubeconf() {
	local cert_name=${1}
	local kubeconf_file=${cert_name}.conf
	local cert=${cert_name}.crt
	local key=${cert_name}.key

	# generate certificate
	check_file ${kubeconf_file}
	# get the key from the old kubeconf
	grep "client-key-data" ${kubeconf_file} \| awk {'print$2'} \| base64 -d > ${key}
	# get the old certificate from the old kubeconf
	grep "client-certificate-data" ${kubeconf_file} \| awk {'print$2'} \| base64 -d > ${cert}
	# get subject from the old certificate
	local subj=$(cert::get_subj ${cert_name})
	cert::gen_cert "${cert_name}" "client" "${subj}" "${CAER_DAYS}"
	# get certificate base64 code
	local cert_base64=$(base64 -w 0 ${cert})

	# backup kubeconf
	# cert::backup_file "${kubeconf_file}"

	# set certificate base64 code to kubeconf
	sed -i 's/client-certificate-data:.*/client-certificate-data: '${cert_base64}'/g' ${kubeconf_file}

	log::info "generated new ${kubeconf_file}"
	rm -f ${cert}
	rm -f ${key}

	# set config for kubectl
	if [[ ${cert_name##*/} == "admin" ]]; then
	mkdir -p ${HOME}/.kube
	local config=${HOME}/.kube/config
	local config_backup=${HOME}/.kube/config.old-$(date +%Y%m%d)
	if [[ -f ${config} ]] && [[ ! -f ${config_backup} ]]; then
	cp -fp ${config} ${config_backup}
	log::info "backup ${config} to ${config_backup}"
	fi
	cp -fp ${kubeconf_file} ${HOME}/.kube/config
	log::info "copy the admin.conf to ${HOME}/.kube/config for kubectl"
	fi
	}

	cert::update_etcd_cert() {
	PKI_PATH=${KUBE_PATH}/pki/etcd
	CA_CERT=${PKI_PATH}/ca.crt
	CA_KEY=${PKI_PATH}/ca.key

	check_file "${CA_CERT}"
	check_file "${CA_KEY}"

	# generate etcd server certificate
	# /etc/kubernetes/pki/etcd/server
	CART_NAME=${PKI_PATH}/server
	subject_alt_name=$(cert::get_subject_alt_name ${CART_NAME})
	cert::gen_cert "${CART_NAME}" "peer" "/CN=etcd-server" "${CAER_DAYS}" "${subject_alt_name}"

	# generate etcd peer certificate
	# /etc/kubernetes/pki/etcd/peer
	CART_NAME=${PKI_PATH}/peer
	subject_alt_name=$(cert::get_subject_alt_name ${CART_NAME})
	cert::gen_cert "${CART_NAME}" "peer" "/CN=etcd-peer" "${CAER_DAYS}" "${subject_alt_name}"

	# generate etcd healthcheck-client certificate
	# /etc/kubernetes/pki/etcd/healthcheck-client
	CART_NAME=${PKI_PATH}/healthcheck-client
	cert::gen_cert "${CART_NAME}" "client" "/O=system:masters/CN=kube-etcd-healthcheck-client" "${CAER_DAYS}"

	# generate apiserver-etcd-client certificate
	# /etc/kubernetes/pki/apiserver-etcd-client
	check_file "${CA_CERT}"
	check_file "${CA_KEY}"
	PKI_PATH=${KUBE_PATH}/pki
	CART_NAME=${PKI_PATH}/apiserver-etcd-client
	cert::gen_cert "${CART_NAME}" "client" "/O=system:masters/CN=kube-apiserver-etcd-client" "${CAER_DAYS}"

	# restart etcd
	docker ps \| awk '/k8s_etcd/{print$1}' \| xargs -r -I '{}' docker restart {} \|\| true
	log::info "restarted etcd"
	}

	cert::update_master_cert() {
	PKI_PATH=${KUBE_PATH}/pki
	CA_CERT=${PKI_PATH}/ca.crt
	CA_KEY=${PKI_PATH}/ca.key

	check_file "${CA_CERT}"
	check_file "${CA_KEY}"

	# generate apiserver server certificate
	# /etc/kubernetes/pki/apiserver
	CART_NAME=${PKI_PATH}/apiserver
	subject_alt_name=$(cert::get_subject_alt_name ${CART_NAME})
	cert::gen_cert "${CART_NAME}" "server" "/CN=kube-apiserver" "${CAER_DAYS}" "${subject_alt_name}"

	# generate apiserver-kubelet-client certificate
	# /etc/kubernetes/pki/apiserver-kubelet-client
	CART_NAME=${PKI_PATH}/apiserver-kubelet-client
	cert::gen_cert "${CART_NAME}" "client" "/O=system:masters/CN=kube-apiserver-kubelet-client" "${CAER_DAYS}"

	# generate kubeconf for controller-manager,scheduler,kubectl and kubelet
	# /etc/kubernetes/controller-manager,scheduler,admin,kubelet.conf
	cert::update_kubeconf "${KUBE_PATH}/controller-manager"
	cert::update_kubeconf "${KUBE_PATH}/scheduler"
	cert::update_kubeconf "${KUBE_PATH}/admin"
	# check kubelet.conf
	# https://github.com/kubernetes/kubeadm/issues/1753
	set +e
	grep kubelet-client-current.pem /etc/kubernetes/kubelet.conf > /dev/null 2>&1
	kubelet_cert_auto_update=$?
	set -e
	if [[ "$kubelet_cert_auto_update" == "0" ]]; then
	log::warning "does not need to update kubelet.conf"
	else
	cert::update_kubeconf "${KUBE_PATH}/kubelet"
	fi

	# generate front-proxy-client certificate
	# use front-proxy-client ca
	CA_CERT=${PKI_PATH}/front-proxy-ca.crt
	CA_KEY=${PKI_PATH}/front-proxy-ca.key
	check_file "${CA_CERT}"
	check_file "${CA_KEY}"
	CART_NAME=${PKI_PATH}/front-proxy-client
	cert::gen_cert "${CART_NAME}" "client" "/CN=front-proxy-client" "${CAER_DAYS}"

	# restart apiserve, controller-manager, scheduler and kubelet
	docker ps \| awk '/k8s_kube-apiserver/{print$1}' \| xargs -r -I '{}' docker restart {} \|\| true
	log::info "restarted kube-apiserver"
	docker ps \| awk '/k8s_kube-controller-manager/{print$1}' \| xargs -r -I '{}' docker restart {} \|\| true
	log::info "restarted kube-controller-manager"
	docker ps \| awk '/k8s_kube-scheduler/{print$1}' \| xargs -r -I '{}' docker restart {} \|\| true
	log::info "restarted kube-scheduler"
	systemctl restart kubelet
	log::info "restarted kubelet"
	}

	main() {
	local node_tpye=$1

	KUBE_PATH=/etc/kubernetes
	CAER_DAYS=3285

	case ${node_tpye} in
	# etcd)
	# # update etcd certificates
	# cert::update_etcd_cert
	# ;;
	master)
	# backup $KUBE_PATH to $KUBE_PATH.old-$(date +%Y%m%d)
	cert::backup_file "${KUBE_PATH}"
	# update master certificates and kubeconf
	cert::update_master_cert
	;;
	all)
	# backup $KUBE_PATH to $KUBE_PATH.old-$(date +%Y%m%d)
	cert::backup_file "${KUBE_PATH}"
	# update etcd certificates
	cert::update_etcd_cert
	# update master certificates and kubeconf
	cert::update_master_cert
	;;
	*)
	log::err "unknow, unsupported certs type: ${node_tpye}, supported type: all, master"
	printf"
	example:
	'\033[32m./update-kubeadm-cert.sh all\033[0m' update all etcd certificates, master certificates and kubeconf
	/etc/kubernetes
	├── admin.conf
	├── controller-manager.conf
	├── scheduler.conf
	├── kubelet.conf
	└── pki
	├── apiserver.crt
	├── apiserver-etcd-client.crt
	├── apiserver-kubelet-client.crt
	├── front-proxy-client.crt
	└── etcd
	├── healthcheck-client.crt
	├── peer.crt
	└── server.crt

	'\033[32m./update-kubeadm-cert.sh master\033[0m' update only master certificates and kubeconf
	/etc/kubernetes
	├── admin.conf
	├── controller-manager.conf
	├── scheduler.conf
	├── kubelet.conf
	└── pki
	├── apiserver.crt
	├── apiserver-kubelet-client.crt
	└── front-proxy-client.crt
	"
	exit 1
	esac
	}

	main "$@"

	[2024-01-02T17:08:03.517506065+0800]: INFO: backup /etc/kubernetes to /etc/kubernetes.old-20240102
	Signature ok
	subject=/CN=etcd-server
	Getting CA Private Key
	[2024-01-02T17:08:03.623833545+0800]: INFO: generated /etc/kubernetes/pki/etcd/server.crt
	Signature ok
	subject=/CN=etcd-peer
	Getting CA Private Key
	[2024-01-02T17:08:03.669417879+0800]: INFO: generated /etc/kubernetes/pki/etcd/peer.crt
	Signature ok
	subject=/O=system:masters/CN=kube-etcd-healthcheck-client
	Getting CA Private Key
	[2024-01-02T17:08:03.695522405+0800]: INFO: generated /etc/kubernetes/pki/etcd/healthcheck-client.crt
	Signature ok
	subject=/O=system:masters/CN=kube-apiserver-etcd-client
	Getting CA Private Key
	[2024-01-02T17:08:03.722051373+0800]: INFO: generated /etc/kubernetes/pki/apiserver-etcd-client.crt
	b9f7b1a762d2
	[2024-01-02T17:08:04.330615364+0800]: INFO: restarted etcd
	Signature ok
	subject=/CN=kube-apiserver
	Getting CA Private Key
	[2024-01-02T17:08:04.375020513+0800]: INFO: generated /etc/kubernetes/pki/apiserver.crt
	Signature ok
	subject=/O=system:masters/CN=kube-apiserver-kubelet-client
	Getting CA Private Key
	[2024-01-02T17:08:04.402700491+0800]: INFO: generated /etc/kubernetes/pki/apiserver-kubelet-client.crt
	Signature ok
	subject=/CN=system:kube-controller-manager
	Getting CA Private Key
	[2024-01-02T17:08:04.470952486+0800]: INFO: generated /etc/kubernetes/controller-manager.crt
	[2024-01-02T17:08:04.481956357+0800]: INFO: generated new /etc/kubernetes/controller-manager.conf
	Signature ok
	subject=/CN=system:kube-scheduler
	Getting CA Private Key
	[2024-01-02T17:08:04.631991064+0800]: INFO: generated /etc/kubernetes/scheduler.crt
	[2024-01-02T17:08:04.643149234+0800]: INFO: generated new /etc/kubernetes/scheduler.conf
	Signature ok
	subject=/O=system:masters/CN=kubernetes-admin
	Getting CA Private Key
	[2024-01-02T17:08:04.696606019+0800]: INFO: generated /etc/kubernetes/admin.crt
	[2024-01-02T17:08:04.774055697+0800]: INFO: generated new /etc/kubernetes/admin.conf
	[2024-01-02T17:08:04.806305103+0800]: INFO: backup /root/.kube/config to /root/.kube/config.old-20240102
	[2024-01-02T17:08:04.810521622+0800]: INFO: copy the admin.conf to /root/.kube/config for kubectl
	[2024-01-02T17:08:04.814804123+0800]: WARNING: does not need to update kubelet.conf
	Signature ok
	subject=/CN=front-proxy-client
	Getting CA Private Key
	[2024-01-02T17:08:04.843010074+0800]: INFO: generated /etc/kubernetes/pki/front-proxy-client.crt
	a992d9f3df88
	[2024-01-02T17:08:09.644624810+0800]: INFO: restarted kube-apiserver
	fd321709db1a
	[2024-01-02T17:08:10.474198268+0800]: INFO: restarted kube-controller-manager
	e1f71d3acbff
	[2024-01-02T17:08:11.037594302+0800]: INFO: restarted kube-scheduler
	[2024-01-02T17:08:11.561803226+0800]: INFO: restarted kubelet
